KS i950r-Adj.Seatpost

Scored and scarred my Kind Shock i900 was still performing pretty well. A change of stanchion shortly after it was used didn't stop the scratch problem from coming back but it's been more than a year now...it seems the newer KS post have been sorted out.

Fought the urge all these while to go back with a remote lever because of the extra cabling and certainly it doesn't score in the looks department which was definitely the case with another post in my inventory, the Gravity Dropper.

However, truth is that for a good number of occasions, with one hand reaching under the seat to grab the lever to adjust saddle height and missing a pedal stroke, it gets pretty annoying. Though it has become second nature but I couldnt help thinking how much more smoothly some things could be cleared if the hand action hasn't cause a pause and impeded the riding flow.

Finally, went over to Eugene at GHC today. Sure enough trust him to dig out a piece of KS i950r. Just had to make sure it wasn't the first generation with setback and cable running down the front but the newer ones where cabling is directed in the rear.

One glance, it is telling that the company has listened to users feedback and improve on subsequent development. I was a little skeptical initially, it was during the time when the rage of adjustable seatposts was dominated by the other brands and Crankbrothers started their bling but less than stellar Joplin line...and here was this small company out of Taiwan that most folks have not heard of.

One of the feedback on the earlier models was the single bolt seatclamp and I believe a number has also resulted in bent rails when saddles were clamped further back. Certainly the case with mine...so bad was the bent that I eventually had to have my favourite saddle replaced.

It can be seen here how the lower clamping plate is extended, to help support the weight. Given that this one now has no setback, all the more important as many folks would have to shift the saddle rearwards.

After removing everything, thinking it was better to have more clearance to fit and tighten up the cable, it stumped me a good 5 minutes when trying to put the bolts back. Realized eventually that the screw thread were not perpendicular like usual. Rather they were cut at an angle. Easy enough after this was figured out.

A side by side comparion of old and new. The extended lower clamping plate compensates for the distance lost in the setback version in terms of where the rails are clamped. I ended up pretty much at the same marking as before and latched the bolts tight. Note the extra length of clamping area and support in the i950r vs the old i900

Tightening the clamp pieces down to the head of the post was a little sketchy. Partially due to the rather fine serrations, it takes a bit of feel to make sure the whole thing is secured. With such design that relies on grooves on both sides, it is important to get them truly interlocking, otherwise things can easily grind down and in this case, it will be nothing more than an uber expensive paperweight at the end of the day.

Shouldnt have worried about tightening the cable tension and had everything removed initially. Again I have not read the provided manual. Really its a well illustrated and helpful guide just like they did with the first generations of the KS posts.

What really mattered was to have the set screw tightened at the cable guide where the cable housing ends. The other was a black set screw locked directly onto the inner shifter cable and hooked over to the red lever. Trick is to pull the lever down slightly and move the set screw piece over and making sure when the remote is depressed, the lever is almost touching the cable guide below. Otherwise the piston inside will not be depressed sufficiently for the post to move down/up. Fine tuning of the length of exposed inner cable between these 2 would adjust how fast the post rebound/ uncompress.

One problem immediately was observed after the cables were nice and snugly in place. Remembering how the cavity where the i900 lever moves in gets clogged up with dirt and mud making adjustments sometimes a little stiff, now the cavity was facing rearward! In this monsoon period, I can just imagine how all the dirt and grime will be finding new home after every ride...and certainly having to clean it out each time would get me bitching after a long day of ridng.

Ok coming from me, its easy to guess. Yup, inner tubing to the rescue again. Cut just enough to cover the cavity and punch it through the lever and put the cable back on.







Scale matters...
Things that make weenies wince. Weight! Less the remote and cable, both posts are virtually the same.


The Remote...
Here comes my next headache... current bling PDW grips doesnt have the usual lock ring end that the KS remote could fit into. My first thought was good ol' inner tubings again! Cut and shimmed to hold the lock ring lever in place. Or simply acquiesce and go back to my old ODI Rogues.  Oh wait... almost forgot the adjustable Bricko grip. Using the first piece that attaches to the lock ring.. a neat solution was staring back at me. Ain't it just great when one's house is filled with all kinds of weird bike bits!


This is how the finished assembly looks on the handlebar.

Cable is a little too long.. but its 4 a.m.... [to be continued]

The Test...
Sun 31 Oct... 3pm after a heavy lunch of sesame chicken and meatballs, post was put to the test. Found myself doing the hands-beneath-the-saddle out of instinct from the old i900 post. But 2 km later...all was ingrained as my thumb got "imprinted" to the remote lever.

It paid off to pay attention when installing... can't complain about the functionality at all on the i950r. There is the all familiar stiction of a new stanchion but at full depression, the post springs up with no hesitation. Rate can be controlled by half depressing the remote. The action not unfamiliar to that of driving a manual car and controlling the clutch.

No wobble or no lateral play. with post down, holding it up by the saddle and moving it around a bit did not raise the post up. But when hooked over the shoulder and carried the bike up some stairs-- it did move up halfway while trudging on those steps. I'm guessing the entire bike weight was just a tad too much for the post to hold down. Nothing major. Will see if this gets "looser" and the post will slip up easier after a few more rides.

Did the little DIY rubber flap covering the cavity where the lever on the post moves to actuate the inner piston work? Yup it did. All the wet soil and sand that was thrown up was left on the outside. Depressing the remote a few times at the end of ride was smooth-- no gritty feeling on the lever at the post end.

June 2011:  Short update... so far all the maintenance done was only wipe down and packing grease under the master bushing and red collar.. No full strip down as post is working really smooth. Minor tightening of cable on  a couple occasions at set screw to get the rebound back to speed. Remote lever took some beating but seems to still hold up well enough.

PDW grips

Was happy with my T-One with add-on DIY cushionings for awhile. But realized that it wasn't really that condusive to use with the Shimano DCLs. no matter how its tweaked, the levers doubling up as shifters will not be as responsive as dedicated brake levers.

This leads to one problem. Getting the right amount of lever reach with a thick ass grip is a bitchy affair. Too close, while one finger is able to be on hand to brake comfortably without stretching but the relatively long lever throw of Shimano brakes leaves too little clearance as the  levers hit the other fingers... before the calipers can effectively clamp down on the rotor.

While adjusting lever reach further away improveson the above, its a bit of a stretch for the index finger and forces the hand to hold it in a position which I'm not comfortable with especially in mid-air.

Mojak posted up a pic of a cool looking grip from Portland Design Works. They seem to be the answer to my problem. With an inner section curved inwards by a few mm, that's all it takes for me to have a better grip as the arch of thumb and index finger can be moved a little closer to the lever while the rest of the hand is still further back. That would allow the hand to hold more comfortably even when the lever has been adjusted further away.

My only hesitation then was the length. It looked to be about the standard length of most grips like ODI Lock On etc. I've been spoilt by adjustable length on the T-Ones.

But still it was too cool to pass up.... so got meself a pair in the end. Not cheap for grips but hey its something not often seen too. Again thanks to Mojak for all the arrangement. I guess there really are still some nice folks around!

Chucked it in my parts stockpile for a month before deciding that once installed, the shiny silver lockrings on the PDW Speed Metal Grips will be scraped and marred under my less than stellar riding into trees plus spills all over the trail by week's end.

Installation was a breeze. The logo part can be rotated to whatever facing you wish. At the same time it dawned on me that since the T-One used adjusable 10mm ringlets..so why not just leave a couple of them on to get back to my normal grip length of 19 cm.

The grip area as usual with most grips was not really to my liking. Might be sufficiently "ribbed" and "studded" if it was part of some vibrating toy in a ladies handbag.

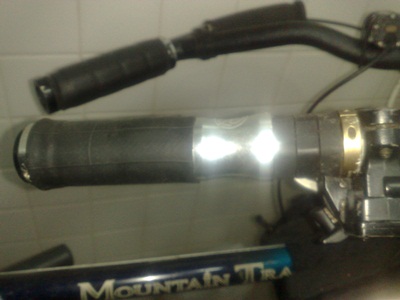

However my big moronic palms whipered in me ears that they still like it thick cushy and rubbery... hence it received a dose of my standard tried and proven punctured tube sleeve. Only this time I did not cover the whole grip as the extra thickness will negate the concave feature which is the whole reason why these grips were gotten in the first place, apart from vanity.

First ride out with these were a little weird. Overall my bar suddenly feels different. Then I realize that the cushioning I had on in the past was really thick. With these now, the comfort level did not really suffer but I could "feel" my front end more, keeping me more in touch with what the front wheel and fork is doing.

I have long since realize that a couple of degrees in a bar can lead to very subtle changes in the way the hand holds them and the resultant shoulder position makes a hell of a difference when riding. The best people to check this out with are trials rider. They have the most demands when it comes to setting up the bar, stem and grips. Similarly the little concave section here is making slight subtle changes in  positive ways.

I manage to screw up my left hand with a really bad sprain right near the start of the ride but was still able to pull through a lap before stopping for the day. But overall even with a mangled paw, there was sufficient comfort in this new grip setup. With the arch of the thumb resting nicely on the concave section, the old T-One rings are probably not necessary as the tendencies to grip that far in is quite remote for me nowadays especially with a bike this big but I just hate having a 2 inch gap between the grip and levers.

Been 2 weeks now with no rides. Got to go out tomorrow night and get some air off the ground and see how the grips + levers work in tandem. From the first trail ride, it should not be disappointing.

All my grips last forever and throwing them out has never been a case of the original rubber area wearing out as all that gets worn out are the inner tube sleeves that gets changed from time to time but with these Speed Metal Grip u can choose to buy an extra set of the grip area. Good for those folks that doesn't have "add-ons" like me. Otherwise all is not lost too. I love hacks of replacing the rubbers on lock ons... and due to the design of the Speed Metals, this hack is even easier than most other lock ons in the market.
